MC285C-3 Spider Crane
- Description
Description
MC285C-3 Spider Crane
DESCRIPTION

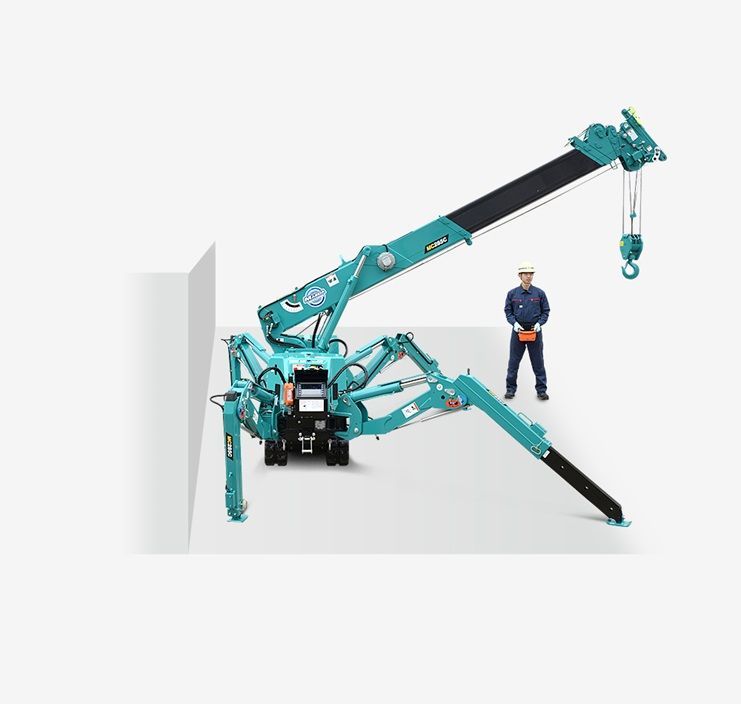

The Maeda MC285C-3 Spider Crane is a compact machine known for its impressive lifting power of 2.82 tons, despite its small footprint. This crane is designed to operate in confined spaces, making it ideal for both indoor and outdoor projects. With a maximum lifting height of 8.7 meters and the ability to reach 10.1 meters below ground, the MC285C-3 offers exceptional maneuverability and strength. Its multi-position outriggers and user-friendly controls ensure precise lifting, while its slim body allows it to fit through standard doorways, making it perfect for restricted-access areas.
MC285C-3 Spider Crane
SPECS
Max Lifting Capacity
2.82 tons (6,210 lbs) at 1.4 meters (4.5 ft)
Max Lifting Height
8.7 meters (28.54 ft)
Max Working Radius
8.205 meters (26.9 ft) at 0.15 tons (330 lbs)
Max Reach Below Ground
-10.1 meters (-33.0 ft)
Dimensions
2,800 mm (L) x 750 mm (W) x 1,470 mm (H)
Weight
1,990 kg
Engine Power
7.4 kW
Benefits of Renting the MC285C-3
- Compact Design: Ideal for tight spaces and easy to transport.
- Advanced Controls: Ensures precise and safe operation.
- Versatile Applications: Suitable for various lifting tasks, both indoors and outdoors.
Applications
- Glass installation
- Steel erection
- Cladding
- Maintenance tasks
- Confined space lifting
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the safety, functionality and usability of the cranes are unsurpassed.
Radio Remote Control with Digital Display
4 fall/2 fall Hook Block
Level
Programmable Moment Limiter
Tilt Alarm
Crane/OR Interlock
Working Limit Setting
Multi Angle Position Outriggers
Working Status Lamp
Data Logger
Machine cover
QUESTIONS & ANSWERS
Q. What is the maximum lifting capacity of the MC285C-3 spider crane?
The MC285C-3 spider crane has a maximum lifting capacity of 2.82 tons (6,210 lbs) at 1.4 meters (4.5 ft).
Q. What are the dimensions of the MC285C-3 when stowed for transport?

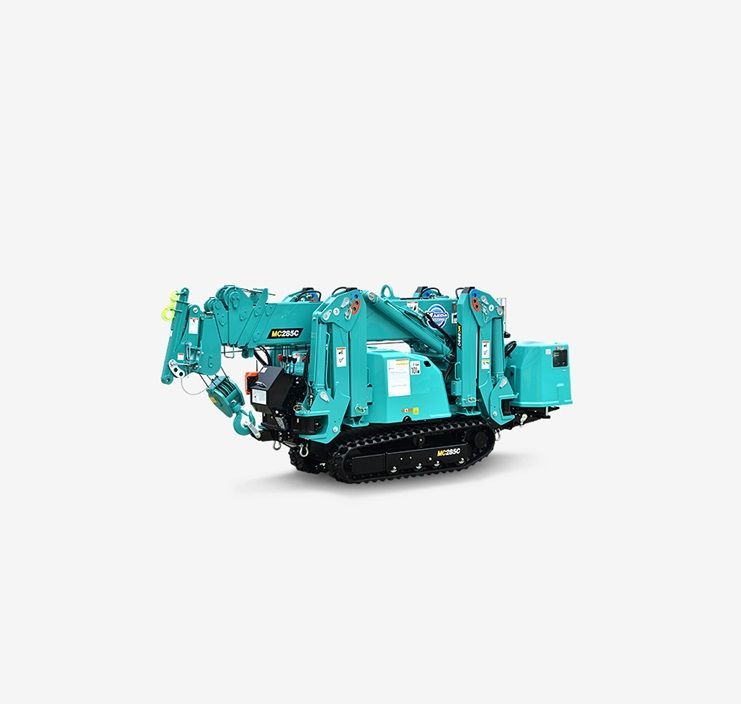

When stowed, the MC285C-3 measures 2,800 mm (L) x 750 mm (W) x 1,470 mm (H).
Q. How high can the MC285C-3 spider crane lift?
The MC285C-3 can lift to a maximum height of 8.7 meters (28.54 ft).
Q. What are the primary applications of the MC285C-3 spider crane?
The MC285C-3 is primarily used for glass installation, steel erection, cladding, maintenance tasks, and lifting operations in confined spaces.
