MC815C Spider Crane
- Description
Description
MC815C Spider Crane
DESCRIPTION

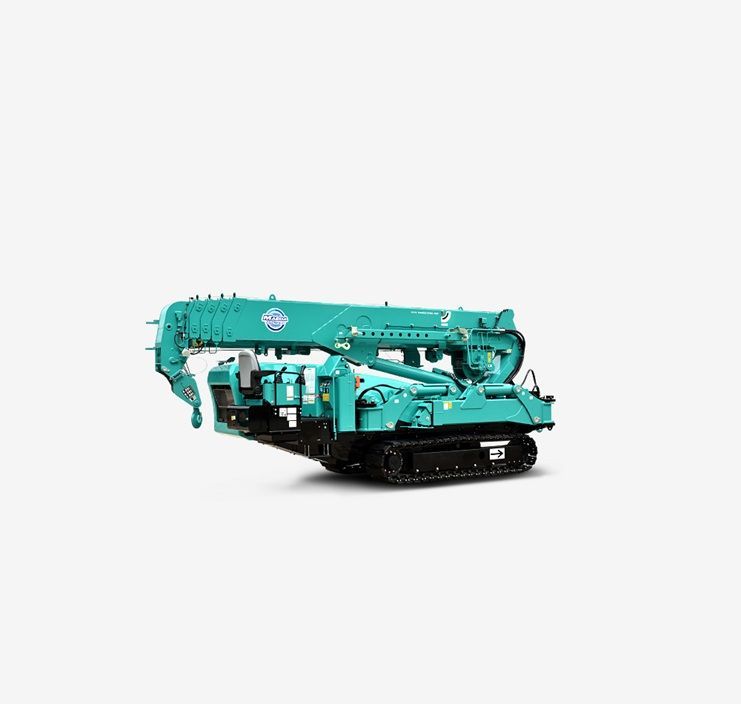

The Maeda MC815C Spider Crane is the largest and most powerful in the Maeda Spider Crane lineup, designed for heavy lifting tasks in confined and open spaces. With a maximum lifting capacity of 8.09 tons and a maximum working radius of 18.8 meters, it offers performance for demanding jobs. The MC815C can reach a lifting height of 19.6 meters, extendable to 25.5 meters with the optional hydraulic fly jib. This crane is equipped with advanced control systems, including a programmable moment limiter and multi-lifting modes, ensuring both safety and precision. It also features a “Pick & Carry” capability, allowing it to move loads up to 1,000 kg.
MC815C Spider Crane
SPECS
Max Lifting Capacity
8.09 tons (17,830 lbs) at 2.4 meters (7.5 ft)
Max Lifting Height
19.6 meters (64.3 ft) (25.5 meters with fly jib)
Max Working Radius
18.8 meters (61.6 ft) at 0.34 tons (750 lbs)
Max Reach Below Ground
-21.0 meters (-68.9 ft)
Dimensions
5,900 mm (L) x 1,670 mm (W) x 2,490 mm (H)
Weight
9,460 kg (9,700 kg with electric motor)
Engine Power
30.5 kW
Benefits of Renting the MC815C
- High Capacity: Suitable for heavy lifting tasks.
- Advanced Controls: Ensures precise and safe operation.
- Versatile Applications: Suitable for various lifting tasks, both indoors and outdoors.
Applications
- Glass installation
- Steel erection
- Cladding
- Maintenance tasks
- Confined space lifting
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the safety, functionality and usability of the cranes are unsurpassed.
Joystick Radio Remote Control
6 fall/4 fall/2 fall Hook Block
Working Status Lamp
Front & Side View Camera
Programmable Moment Limiter (Touchscreen)
Crane/OR Interlock
Tilt Alarm
Slew Angle Limit Setting
Diagnostic Display Panel
Data Logger
Anti Slack Device
Auto Levelling Function
Auto-Crane Stow Function
2 Speed Functions
Crane speed accelerator
Multi Lifting Mode
Power Lifting Mode
Pick & Carry
QUESTIONS & ANSWERS
Q. What is the maximum lifting capacity of the MC815C spider crane?
The MC815C spider crane has a maximum lifting capacity of 8.09 tons (17,830 lbs) at 2.4 meters (7.5 ft).
Q. What are the dimensions of the MC815C when stowed for transport?
When stowed, the MC815C measures 5,900 mm (L) x 1,670 mm (W) x 2,490 mm (H).
Q. How high can the MC815C spider crane lift?
The MC815C can lift to a maximum height of 19.6 meters (64.3 ft) and 25.5 meters (83.6 ft) with a fly jib.
Q. What are the primary applications of the MC815C spider crane?
The MC815C is primarily used for glass installation, steel erection, cladding, maintenance, and large-scale lifting projects.
